₹150.00 ₹150.00
Product Code: JLAW-3S10A-N
Configuration: 3 Series (3S)
Rated Current: 10A
Battery Type: 18650 / Li-ion / Li-polymer
Brand: JLAW
Category: Battery Management System (BMS) with Nickel Strips

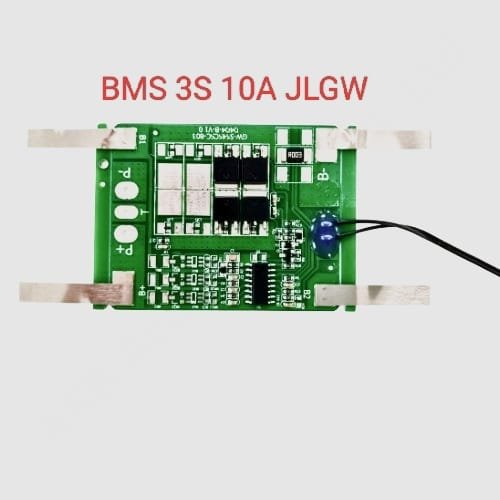

The 3S 10A JLAW Li-ion BMS with pre-attached nickel strips is a protection circuit designed for 3-cell lithium-ion battery packs. It offers essential protection features including overcharge, over-discharge, overcurrent, and short-circuit protection. The included nickel strips make it convenient for spot welding or soldering directly onto battery packs, making it ideal for compact battery assemblies and DIY applications.
| Parameter | Specification |
|---|---|
| Battery Type | Li-ion / Li-polymer |
| Cell Configuration | 3S (3 cells in series) |
| Charging Voltage | 12.6V (4.2V × 3 cells) |
| Rated Discharge Current | 10A |
| Max Discharge Current | Up to 12–15A (short burst) |
| Overcharge Protection | ~4.25V ± 0.05V per cell |
| Over-discharge Protection | ~2.5V ± 0.05V per cell |
| Overcurrent Protection | Yes |
| Short-circuit Protection | Yes |
| Balancing Function | No |
| Nickel Strip Width | 8mm (typical) |
| Board Dimensions | Approx. 45mm x 20mm x 3mm |
| Weight | Approx. 7g (with nickel) |
Overcharge and Over-discharge Protection
Overcurrent and Short-circuit Protection
Pre-welded Nickel Strips for Easy Installation
Compact and Lightweight
No Balancing Function (manual balancing may be required)
DIY 18650 Battery Packs
Low-to-medium power E-bikes and Scooters
Solar Light Systems
Power Banks
Flashlights and LED Lighting Systems
Robotics and Small Electric Vehicles
