₹690.00 ₹690.00
Reliable Protection and Balancing for 6-Cell Lithium-Ion Battery Packs

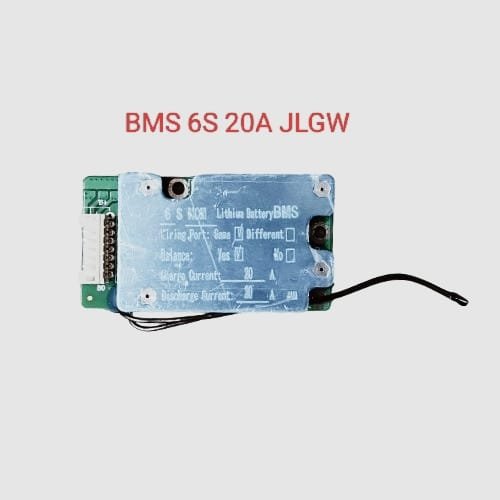

The 6S-20A JLGW Li-ion BMS is engineered for managing and protecting 6-series (6S) lithium-ion battery packs. It supports a maximum continuous discharge current of 20A, making it ideal for mid-range applications such as e-bikes, energy storage systems, portable tools, and DIY battery projects. With built-in overcharge, overdischarge, short-circuit, overcurrent, and cell balancing functions, this BMS ensures the safety, stability, and longevity of your battery pack.
6S Configuration: Supports 6 lithium-ion cells in series (22.2V nominal, 25.2V fully charged).
20A Continuous Discharge Current: Handles moderate to high power loads.
Cell Balancing Function: Balances the voltage of each cell during charging to prevent overcharging and extend battery life.
Comprehensive Safety Protections: Includes overcharge, overdischarge, overcurrent, short circuit, and temperature protection.
Compact Design: Small footprint allows easy integration into custom battery packs.
Simple Installation: Clearly labeled terminals and included balance connector for straightforward setup.
| Specification | Details |
|---|---|
| Battery Type | Lithium-Ion (Li-ion) |
| Series Configuration | 6S (6 cells in series) |
| Nominal Voltage | 22.2V |
| Maximum Charge Voltage | 25.2V (4.2V per cell) |
| Minimum Discharge Voltage | 18.0V (3.0V per cell) |
| Max Continuous Discharge | 20A |
| Max Charge Current | 5A–10A (depending on model variant) |
| Balance Current | 60–100mA per cell |
| Overcharge Detection | 4.25V ± 0.05V per cell |
| Overdischarge Detection | 2.8V ± 0.1V per cell |
| Overcurrent Protection | Yes (auto-recovery) |
| Short Circuit Protection | Yes |
| Temperature Protection | Yes (if equipped with sensor) |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Balance Connector Type | JST-XH 7-pin |
Overcharge protection
Overdischarge protection
Overcurrent protection
Short circuit protection
Cell balancing
Optional temperature protection
Electric bicycles and scooters
Solar and renewable energy storage systems
Portable battery-powered tools and devices
Uninterruptible power supplies (UPS)
DIY lithium-ion battery packs
Robotics and hobby electronics
