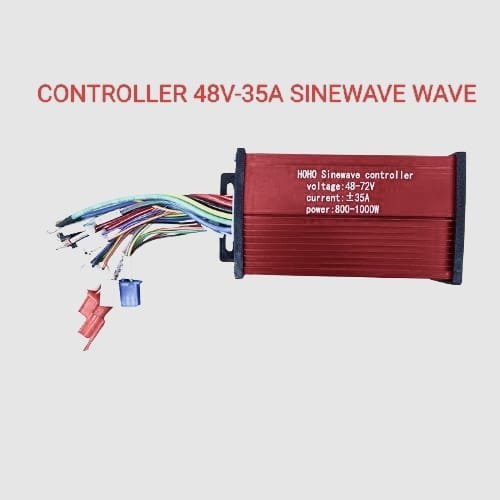

Controller 48V–35A Sine Wave Controller

The 48V–35A Sine Wave Controller is a high-efficiency motor controller designed for electric vehicles operating on a 48V battery system. It delivers a continuous current of 35 Amps and uses advanced sine wave technology to provide smooth, quiet, and energy-efficient control of brushless DC (BLDC) motors.

Key Features:

• Input Voltage: Compatible with 48V battery systems

• Continuous Current: 35 Amps for medium power electric vehicles

• Sine Wave Output: Generates clean sinusoidal voltage and current, reducing motor noise, vibration, and torque ripple for smoother operation

• Motor Compatibility: Supports both sensored and sensorless BLDC motors

• Programmable Functions:

  • Adjustable throttle response

  • Multiple speed modes

  • Regenerative braking support

  • Soft start and controlled acceleration

• Safety Protections:

  • Over-voltage and under-voltage protection

  • Over-current protection

  • Over-temperature protection

  • Short-circuit protection

• Thermal Management: Aluminum casing with heat dissipation fins

• Diagnostics: LED indicators for operational status and fault alerts

Applications:

• Electric scooters and e-bikes

• Medium-performance electric motorcycles

• Urban electric vehicles requiring quiet and smooth operation

• Small utility and cargo electric vehicles
