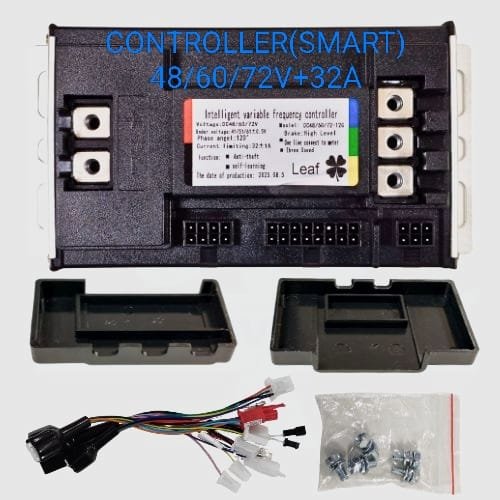

Smart Controller 48/60V–32A – BLDC Motor Controller for Electric Vehicles

The Smart Controller 48/60V–32A is a compact, energy-efficient motor controller designed for brushless DC (BLDC) motors used in light electric vehicles. With support for 48V and 60V battery systems and a continuous output current of 32 Amps, this controller is ideal for electric scooters, bikes, and lightweight three-wheelers requiring reliable and smooth motor control.

Key Features:

• Dual Voltage Support: Compatible with both 48V and 60V battery systems

• 32A Continuous Output Current: Delivers stable power for light-to-medium duty electric vehicles

• BLDC Motor Support: Works with both sensor and sensorless motors

• Programmable Functions:

  • Throttle sensitivity

  • Speed mode switching (eco/sport)

  • Regenerative braking configuration

  • Soft start and acceleration control

  • Optional reverse and cruise control features

• Smooth Motor Operation: Ensures low-noise, low-vibration performance

• Compact and Lightweight Design: Optimized for easy installation in small vehicle compartments

Protection Features:

• Over-voltage and under-voltage protection

• Over-current and short-circuit protection

• Over-temperature shutdown

• Motor phase detection and protection

• Reverse polarity protection (model dependent)

Technical Specifications:

• Input Voltage: 48V / 60V DC

• Continuous Current: 32A

• Peak Current: Up to ~55A (short duration)

• Motor Type: BLDC with or without Hall sensors

• Operating Temperature: -20°C to 70°C

• Cooling Method: Passive (aluminum heat sink casing)

• Protection Grade: IP54–IP65 (depending on the model)

Applications:

• Electric scooters

• E-bikes and electric mopeds

• Light electric motorcycles

• Electric cargo tricycles

• Delivery and personal mobility vehicles
