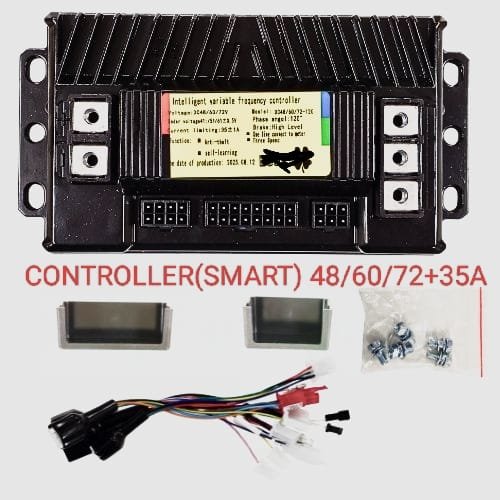

Smart Controller 48/60V–35A – BLDC Motor Controller for Electric Vehicles

The Smart Controller 48/60V–35A is a compact and efficient brushless DC (BLDC) motor controller designed for electric scooters, bikes, and light-duty three-wheelers. It supports dual-voltage operation at 48V and 60V, delivering a continuous output current of 35 Amps, suitable for moderate-performance electric vehicle applications.

Key Features:

• Supports 48V and 60V battery systems

• Compatible with BLDC motors (with or without Hall sensors)

• Delivers 35A continuous current for stable and responsive power delivery

• Regenerative braking function for improved energy efficiency

• Programmable settings:

  • Throttle response adjustment

  • Speed mode switching (e.g., eco/sport)

  • Brake strength and regen level

  • Soft start and acceleration curve

• Optional reverse and cruise control functions

• Smooth, low-noise motor operation

• Diagnostic LED indicators or communication interface (varies by model)

Built-in Protections:

• Over-voltage protection

• Under-voltage protection

• Over-current protection

• Short-circuit protection

• Over-temperature protection

• Motor phase error detection

Technical Specifications:

• Input Voltage: 48V / 60V DC

• Rated Current: 35A continuous

• Peak Current: Up to ~60A (short bursts)

• Motor Type: BLDC (sensor or sensorless)

• Operating Temperature: -20°C to 70°C

• Enclosure: Aluminum case with heat sink for effective cooling

• Protection Grade: Typically IP54–IP65 (model dependent)

Applications:

• Electric scooters

• E-bikes and pedelecs

• Light electric motorcycles

• Electric tricycles and cargo vehicles

This controller is an ideal solution for manufacturers and users looking for reliable, programmable, and safe motor control in small to mid-size electric mobility platforms.
