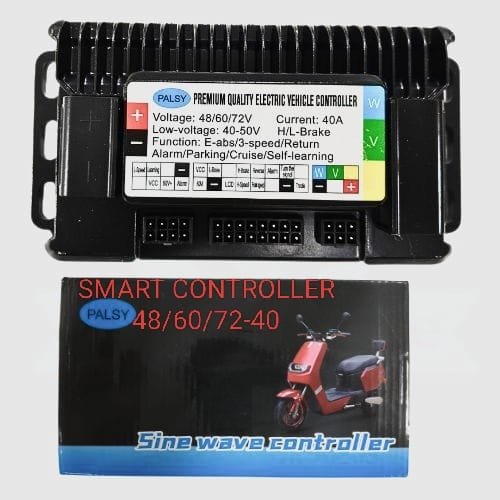

Smart Controller 48/60/72V–40A – Brushless DC Motor Controller

The Smart Controller 48/60/72V–40A is a high-efficiency, programmable BLDC motor controller designed for electric two-wheelers, three-wheelers, and small utility vehicles. It supports multiple battery voltage systems — 48V, 60V, and 72V — and delivers a continuous current of 40 amps, making it ideal for medium-load applications where stability, performance, and protection are essential.

Key Features:

• Compatible with 48V, 60V, and 72V battery systems

• Supports both sensor and sensorless BLDC motors

• Continuous current output of 40A, with peak current up to ~70A

• Regenerative braking support for improved battery efficiency

• Programmable parameters: speed modes, throttle sensitivity, braking levels

• Smooth start and acceleration with low noise and vibration

• Built-in protection features:

  • Over-voltage and under-voltage protection

  • Over-current and short-circuit protection

  • Over-temperature protection

  • Phase loss detection

• Optional cruise control and reverse gear support

• Aluminum housing for effective heat dissipation

• Diagnostic LED indicators or communication interface (UART/RS485/CAN, depending on model)

Typical Applications:

• Electric scooters and bikes

• Electric motorcycles

• Passenger or cargo three-wheelers (e-rickshaws)

• Small electric utility vehicles such as golf carts or delivery carts

Technical Specifications:

• Input Voltage: 48V / 60V / 72V DC

• Rated Continuous Current: 40A

• Peak Current: Up to 70A

• Motor Type: BLDC (with or without Hall sensors)

• Operating Temperature: -20°C to 70°C

• Protection Level: IP rated (depends on model)

This controller is designed to provide a balance between power, control precision, and durability, making it a reliable choice for various electric mobility applications.
